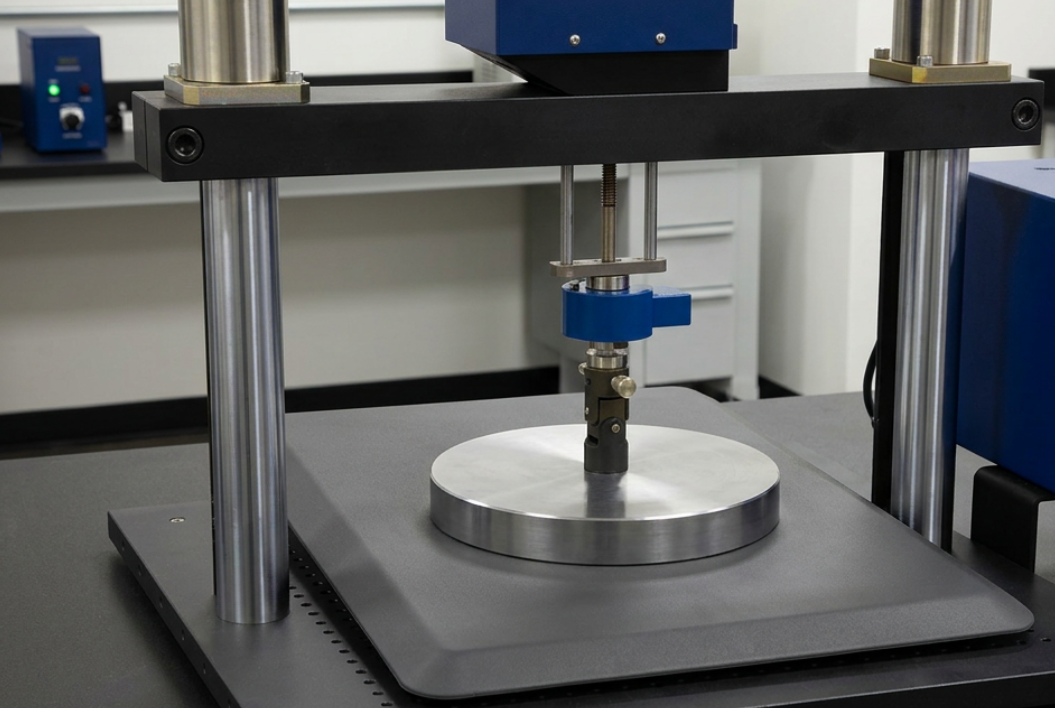

Why Your Anti-Fatigue Mat Goes Flat — And What Compression Set Actually Tells You

Why Your Anti-Fatigue Mat Goes Flat — And What Compression Set Actually Tells You

What Lab Testing Actually Means — WellnessMats Professional
1 ASTM D3574 — TEST D Material Science • 7 min read

Why Your Anti-Fatigue Mat Goes Flat — And What Compression Set Actually Tells You

If you manage a facility, run a salon, or oversee EHS for a warehouse floor, you’ve seen it happen: a mat that felt supportive on day one is paper-thin six months later. Workers start complaining about sore feet again. You order replacements. The cycle repeats.

That’s not normal wear. That’s compression set — and it’s the single most important performance metric most buyers never check.

What Is Compression Set?

Compression set measures how much of its original thickness a material fails to recover after being compressed for a sustained period. The standard test is ASTM D3574, Test D: the material is compressed to 50% of its thickness for 22 continuous hours, then allowed to recover for 30 minutes.

The result is expressed as a percentage of permanent deformation. A compression set of 10% means the material lost 10% of its original thickness permanently. A compression set of 50% means it recovered only half its cushion.

Lower compression set = better recovery. A mat with under 10% compression set will feel virtually the same after months of daily use as it did the day it was installed.

What Happens When Compression Set Is High

PVC / Vinyl Mats

PVC mats typically exhibit 30–50% compression set within the first year. The material compresses under standing weight and doesn’t bounce back because the cellular structure collapses permanently. You can often see this visually — the mat develops a visible body impression in the standing zone while the edges remain thick.

Nitrile Rubber Mats

Rubber performs slightly better than PVC but still degrades meaningfully under sustained load. Most rubber mats show 20–35% permanent set within 12–18 months, depending on thickness and density. The degradation accelerates in warm environments (near ovens, industrial equipment) because heat softens the polymer chains that provide recovery.

Open-Cell Foam Composites

These are the budget mats you see at big-box retailers. Open-cell foams can lose 40–60% of their cushion in as little as three months because the cell walls are thin and collapse under repetitive compression. They’re functionally a disposable product.

What Good Looks Like: The Polyurethane Difference

Closed-cell polyurethane — the material WellnessMats are made from — behaves fundamentally differently under compression. The cell structure is engineered to deform elastically rather than plastically, meaning the cells compress and then return to their original shape rather than collapsing.

Supreme
93.8%
recovered
Connect
91.9%
recovered
Permanent Set
<10%
both collections

In practical terms, under 10% compression set means the mat delivers the same ergonomic support after a year of daily use that it provided on installation day. There is no “break-in period” where it starts great and slowly declines. The cushion is the cushion — permanently.

Why This Matters for Total Cost of Ownership

Most facilities budget for mat replacement every 12–18 months. At $40–$80 per mat across dozens or hundreds of workstations, that’s a significant recurring expense. But it’s not just the purchase cost:

Procurement time. Someone has to identify the need, source the product, process the PO, receive the delivery, and distribute the mats. Across a large facility, that’s hours of labor per cycle.

Disposal costs. PVC and rubber mats aren’t recyclable in most municipal programs. They go to landfill.

Ergonomic risk window. Between when a mat starts losing cushion and when it gets replaced, workers are standing on a surface that no longer provides meaningful support. That’s when musculoskeletal complaints increase, absenteeism ticks up, and workers’ comp exposure grows.

What to Ask Your Current Supplier

1. What is the compression set percentage after 22 hours at 50% deflection?
Anything above 15% means noticeable cushion loss within the first year. Above 30% means the mat is functionally spent in 6–9 months.
2. Was the test performed by an accredited third-party lab?
In-house testing is common and unreliable. Look for A2LA or ISO 17025 accreditation on the test report.
3. Is the test data for the actual product or a raw material sample?
Some manufacturers test the raw polyurethane or rubber before it’s processed into a mat. Finished-product testing is what matters because manufacturing processes can degrade compression performance.
Compression set is the reason most anti-fatigue mats fail. If your mat goes flat, it’s not because anti-fatigue mats don’t work. It’s because that anti-fatigue mat was made from the wrong material.
2 ASTM D3574 — TEST I Durability • 6 min read

80,000 Impacts and Counting: What Dynamic Fatigue Testing Reveals About Mat Lifespan

Compression set tells you what happens when someone stands in one spot all day. But real-world use isn’t static — workers shift their weight, step on and off, drop objects, and roll carts across the surface. Dynamic fatigue testing simulates that reality.

How Dynamic Fatigue Testing Works

ASTM D3574, Test I subjects the mat to 80,000 repeated impacts using a weighted indenter that strikes the surface at a controlled force and frequency. The test measures two things: how much thickness the mat loses after all 80,000 cycles, and whether any structural failures occur.

To put 80,000 impacts in perspective: if a worker takes roughly 100 steps on a mat per day, 80,000 cycles represents approximately 3–4 years of continuous daily use compressed into a single laboratory session.

What Failure Looks Like

Progressive Thinning

The most common failure mode is gradual, irreversible thickness loss. The mat doesn’t catastrophically fail — it slowly gets thinner and harder. By the time it’s noticeable to workers, the mat may have already lost 15–25% of its original thickness.

Structural Cracking

In layered mats (PVC topcoat over foam core), repeated impacts create micro-fractures at the layer boundary. Once the surface layer is compromised, moisture, dirt, and bacteria enter the foam core — accelerating every other failure mode simultaneously.

Internal Cell Collapse

Open-cell foam mats are particularly vulnerable because each impact crushes the thin cell walls. Unlike compression set, dynamic fatigue is thousands of rapid load-unload cycles. The cell walls don’t have time to recover between impacts, and they eventually fracture permanently.

Our Results

Supreme
2.0%
thickness loss
Connect
1.9%
thickness loss
Structural Failures
0
after 80,000 impacts

Less than 2% thickness loss is functionally undetectable — both by measurement and by feel. The mat’s ergonomic performance after three to four simulated years of daily traffic is essentially identical to day one.

A mat that loses 10–15% of its thickness per year enters a gray zone where it’s “still there” but no longer performing. Workers feel the difference before management sees it. That’s where injury risk quietly climbs and the anti-fatigue program loses credibility.

The Real Test for Your Current Mats

If your mat supplier only provides compression set data (or no data at all), ask specifically for ASTM D3574-I results. If they can’t provide them, consider what that implies about confidence in their product’s durability under actual working conditions.

The best predictor of whether a mat will still be doing its job in year three is its dynamic fatigue performance. Under 5% thickness loss at 80,000 cycles means the mat’s useful life extends well beyond any replacement budget cycle — which is exactly the point.

3 AATCC 197 / 79 / 81 Hygiene & Safety • 6 min read

Zero Absorption: Why Moisture Resistance Is the Anti-Fatigue Mat Spec Nobody Checks

When facilities managers evaluate anti-fatigue mats, they look at thickness, comfort, slip resistance, and price. Almost nobody asks about moisture resistance. That’s a problem — because moisture behavior determines whether your mat becomes a hygiene liability hiding in plain sight.

The Three Moisture Tests

AATCC 197 — Vertical Wicking

This test measures how far liquid travels through the material’s internal structure via capillary action. A strip of the mat material is partially submerged in water, and the height of water migration is measured after 30 minutes. Any wicking means the material has internal pathways that transport moisture into the core.

AATCC 79 — Surface Absorbency

A droplet of water is placed on the surface and the time until it’s fully absorbed is measured. The longer the droplet sits without absorbing, the more impermeable the surface.

AATCC 81 — pH of Water Extract

This test soaks the material and measures the pH of the resulting water. It indicates chemical compatibility and skin contact safety.

Vertical Wicking
0.00 mm
zero migration
Surface Absorbency
60+ sec
no penetration
pH Extract
7.4–8.5
neutral / safe

What Happens When Mats Absorb Moisture

Bacterial and Fungal Growth

When liquid enters a mat’s core, it creates a warm, dark, moist environment — the ideal breeding ground for bacteria, mold, and fungus. The mat might look clean on top while harboring colonies inside that produce the unmistakable sour odor facilities managers know well. You can’t mop this problem away. The contamination is inside the mat.

Increased Weight and Handling Difficulty

A mat that absorbs moisture gets heavier over time. In environments where mats are lifted for regular floor cleaning, a waterlogged mat becomes a manual handling hazard.

Accelerated Material Degradation

Moisture inside a mat’s foam core softens the cell walls and accelerates compression set. A mat that might otherwise last 18 months goes flat in 8–10 because the internal structure is literally dissolving.

Slip Risk on the Underside

When moisture penetrates to the bottom of the mat, it reduces friction between the mat and the floor. The mat starts migrating during use — creating exactly the trip-and-fall hazard the mat was supposed to prevent.

WellnessMats uses a single continuous piece of polyurethane — surface to base. There is no topcoat, no lamination boundary, no seams, and no adhesive layer that can fail. The material itself is inherently moisture-impermeable at every point, which is why the results show zero absorption and zero wicking.

The Question to Ask

Next time you evaluate a mat, ask the supplier: “What is the AATCC 197 vertical wicking measurement for your finished product?” If they can’t answer, or if the answer is anything above 0.0 mm, that mat will eventually absorb moisture. It’s not a question of if. It’s a question of when — and what grows inside it once it does.

4 ASTM D751 / D2261 Durability • 5 min read

Why Anti-Fatigue Mats Peel, Crack, and Delaminate — And How Adhesion Testing Predicts It

You’ve seen it before: the top surface of a mat starts lifting at the edges. A corner curls up. The textured coating separates from the foam core underneath. Within weeks, the entire surface layer is peeling away.

That’s delamination, and it’s the second most common reason anti-fatigue mats end up in the dumpster. The test that predicts it is coating adhesion: ASTM D751.

What Coating Adhesion Testing Measures

ASTM D751 measures the force (in pounds-force) required to peel the surface layer away from the substrate. A specimen is clamped in a tensile testing machine, and the surface coating is pulled away from the core at a controlled rate. Higher adhesion values mean a stronger bond — but the type of bond matters just as much as its strength.

Why Multi-Layer Mats Delaminate

Adhesive Bonding

The most common and cheapest method. The surface layer is glued to the foam core. Adhesive bonds degrade under heat, moisture, cleaning chemicals, and mechanical flex. In commercial environments where all four conditions exist simultaneously, adhesive-bonded mats can begin delaminating in as little as 6 months.

Heat Welding

Better than adhesive, but still creates a discrete bond line between two different materials. Thermal cycling stresses the weld zone over time.

Mechanical Bonding

The textured pattern on some rubber mats is mechanically pressed into the surface. Under repeated foot traffic, the pattern wears down and separates because there’s no chemical bond — just friction holding it in place.

Coating Adhesion
4.58–4.64
lbf
Tear Strength
17.85
lbf (lengthwise)
Layer Separation
N/A
no layers to separate

WellnessMats are manufactured from a single continuous pour of polyurethane. The surface and the core are the same material, formed in one process. The “adhesion” value we report is effectively the material’s internal cohesive strength — how hard it is to tear the material apart from itself.

Delamination requires two layers to exist. When there’s only one material, the failure mode doesn’t exist.

Tear Strength: The Other Half

ASTM D2261 measures how much force it takes to propagate a tear through the material once initiated. At 15–18 lbf, a surface nick from a dropped tool or a cart wheel doesn’t spread into a rip. The mat continues to function normally even after minor surface damage.

What to Look For in Competitive Products

When evaluating a competitor’s mat, look at the edge profile. If you can see distinct layers — a surface coating that’s visibly different from the core material — that mat has a delamination risk, regardless of what the adhesion test says. The question isn’t whether the bond is strong today; it’s whether it will survive a year of chemical exposure, temperature variation, and 80,000 footfalls.

5 ASTM D4157 — WYZENBEEK Surface Performance • 5 min read

Class 5.0: What Surface Abrasion Testing Tells You About Long-Term Mat Appearance

Anti-fatigue mats live on the floor. They get walked on thousands of times a day, dragged by chairs and carts, scrubbed with industrial cleaners, and exposed to grit and debris. The surface takes the brunt of all of it.

How the Wyzenbeek Test Works

A #10 cotton duck abradant is dragged back and forth across the surface under controlled pressure. One back-and-forth equals one “double rub.” The standard commercial test runs for 10,000 double rubs. After the cycles, the surface is evaluated on two scales:

Pilling Resistance (Class 1–5)

Pilling is the formation of small, raised balls of material on the surface. Class 5 means the surface showed zero pilling after 10,000 cycles. Class 1 means severe pilling with the surface covered in raised fiber balls.

Color Change (Class 1–5)

This measures whether abrasion altered the surface color through material removal, whitening, or exposure of a different substrate underneath. Class 5 means no visible change; Class 1 means severe discoloration.

Pilling
Class 5.0
perfect — zero pilling
Color Change
3.5–4.0
slight to negligible
Cycles Tested
10,000
double rubs

Why Pilling Matters More Than It Sounds

Reduced Slip Resistance

A pilled surface changes the friction profile of the mat. The raised fiber balls create an uneven micro-texture that behaves differently than the engineered surface, particularly when wet.

Accelerated Contamination

Pilled areas trap dirt, grease, and cleaning residue in the raised texture. The mat becomes progressively harder to clean because contaminants are embedded in a rough surface rather than sitting on a smooth one.

Indicator of Broader Surface Failure

Pilling at 10,000 cycles often predicts cracking, flaking, or delamination at 20,000–50,000 cycles. It’s an early warning sign that the surface coating isn’t bonded well enough to survive extended use.

What Poor Abrasion Looks Like in Practice

Walk into any facility that’s had its mats for more than a year. Look at the standing zone — the area directly in front of the workstation. On a mat with poor abrasion resistance, you’ll see:

Whitening or discoloration where the topcoat has been worn through, exposing the lighter-colored foam core beneath.

Surface roughness that catches on shoe soles and feels gritty underfoot.

Visible wear pattern with a clear boundary between the abused standing zone and the unused edges.

When evaluating mats, ask for Wyzenbeek abrasion data at 10,000 cycles minimum. Class 4+ on pilling is acceptable for commercial use. Class 5 means the surface is effectively abrasion-proof. Below Class 3 means visible degradation within the first year.

If the manufacturer can’t provide Wyzenbeek data, pick up the mat and rub the surface firmly with your thumb 20 times. If you see any material transfer, surface whitening, or raised fibers, that surface won’t survive 10,000 footfalls — let alone 10,000 Wyzenbeek cycles.

Advanced Polyurethane Technology

Performance You
Can Prove.

14 ASTM & AATCC tests. A2LA-accredited laboratory. Real data behind every claim.

Explore WellnessMats Professional
Precision Testing Laboratories, Nashville, TN • A2LA Certificate #7327.01
Reports 61065 & 61066 • February 26, 2026
Older articles Back to WellnessMats Professional Newer articles
